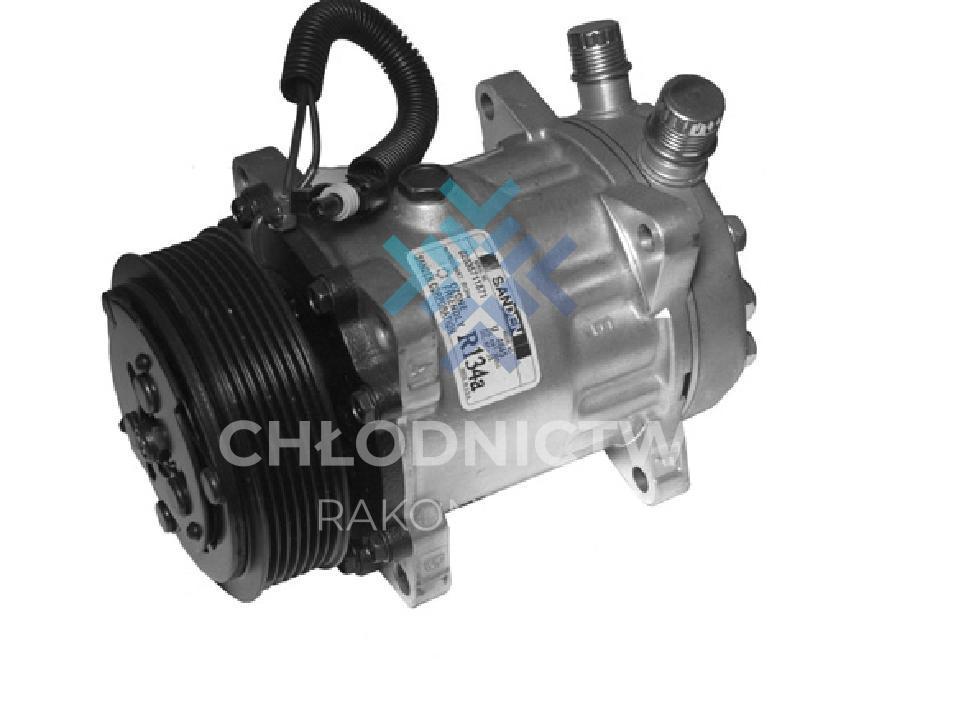

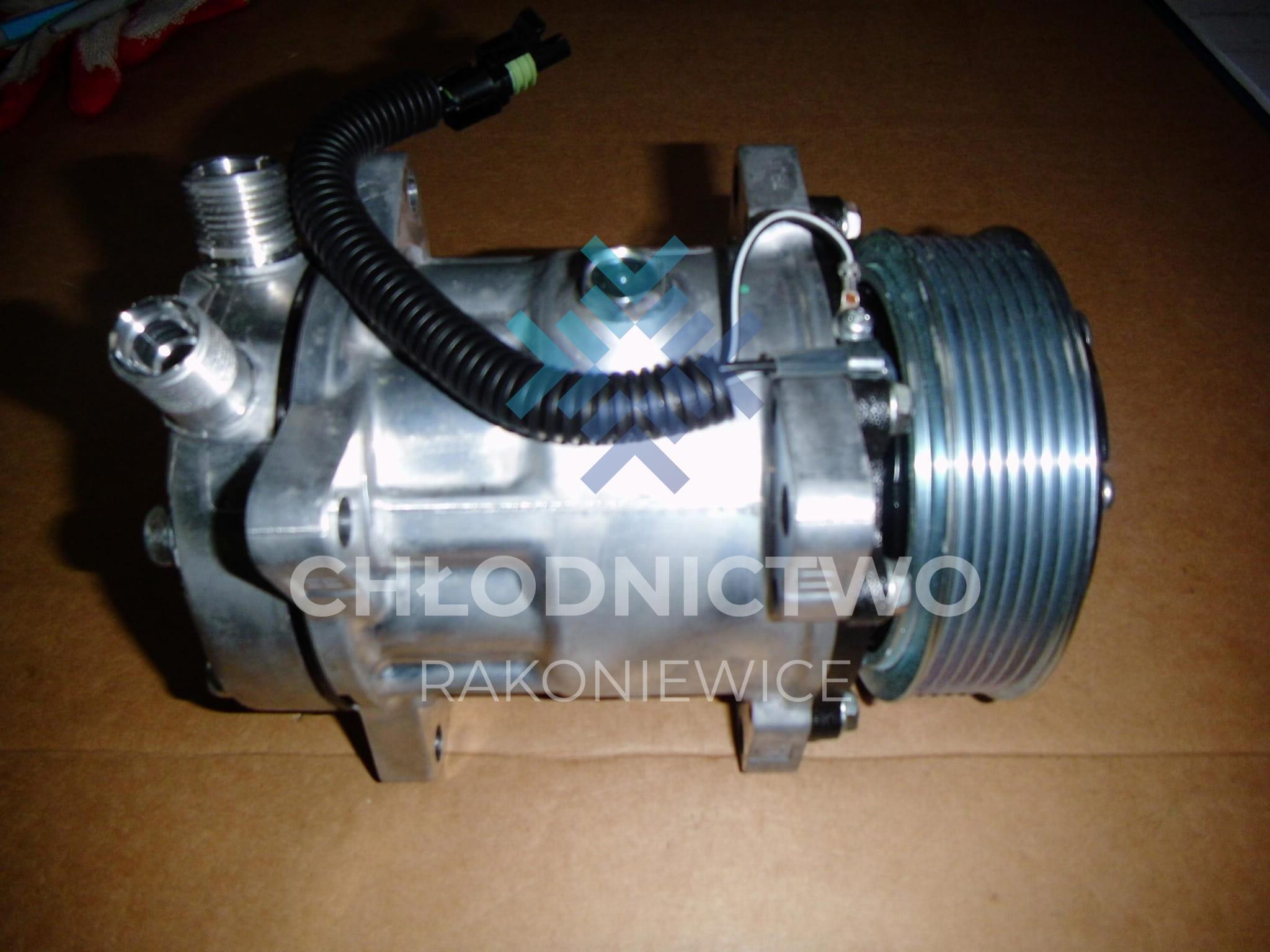

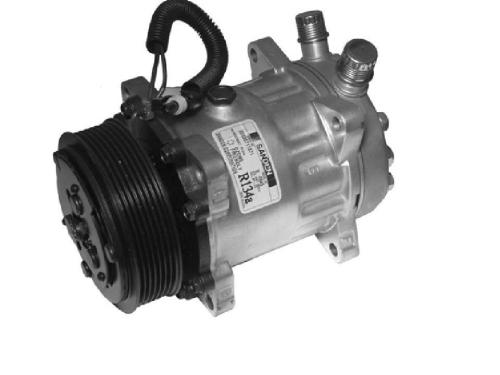

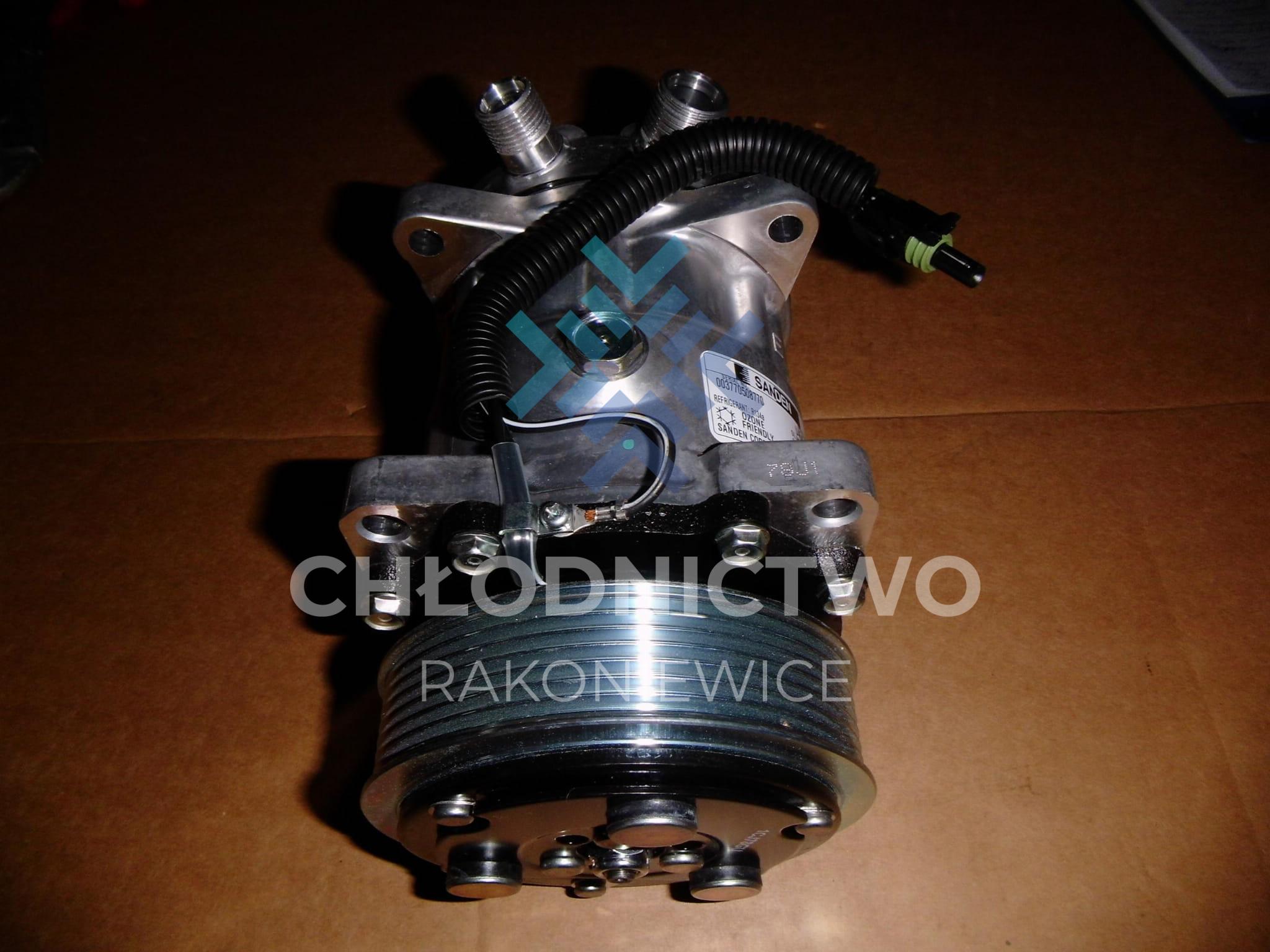

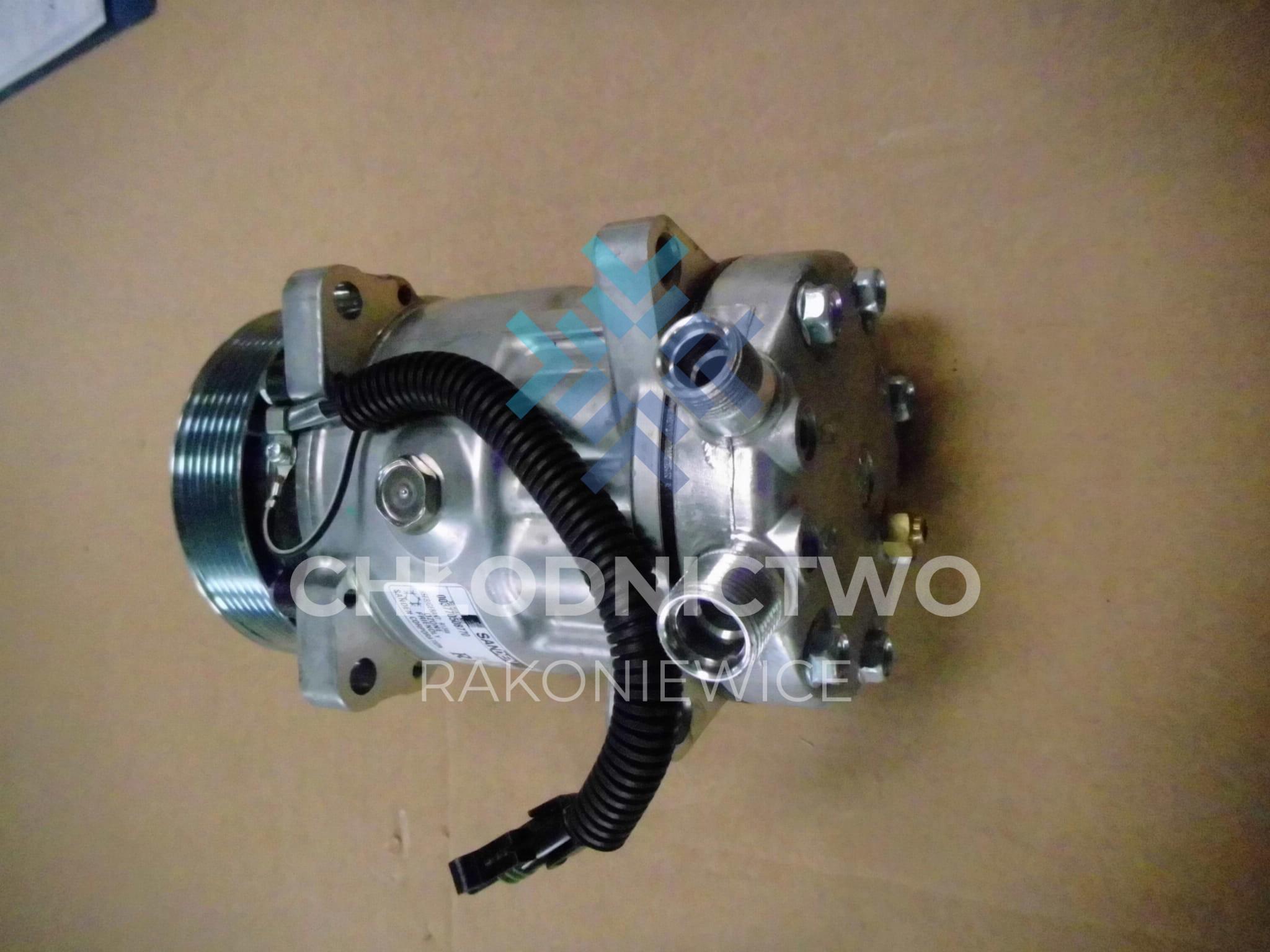

Compressor SD7H15 / 7PK / 12V ; B402853 / 1401110 / U4645 NEW

Compressor

Sanden

Model:
SD7H15, SD 7H15

7PK

Voltage: 12V

Pulley diameter: 123mm

Outputs vertical - O-ring: inlet

R 134a

7-8 kg

MADE IN USA

NEW

Catalog number:

B402853 / 1401110 / U4645
B402853-1401110-U4645

SD7H15HD 4665 VOR 119mm PV7 12V EAR

Kenworth, All Models, w/7 gr 119mm 4.6" dia. w/vert. o’ring (4645), OEM# LE1150

Peterbilt, All Models, w/7 gr 119mm 4.6" dia. w/vert oring (4645), OEM# F69-6002-243, LE1150

Western Star, SD7H15, 7 gr. 119 mm Dia. Ear mtg w/oring (4645), OEM# 61104-3423

International (Navistar), All Models, w/7 gr 119mm; Ear mtg. w/vert oring (4645), OEM# 2003413-C91

Specifications

Manufacturer #: 4645

Application: Multi Fit Applications

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 119mm

No. of Grooves: 7 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: JDA

Wire Type: 1 Wire Male Packard #12015791 W/ Diode

Replacement Clutch Assy.: 02-3468 see note

Replacement Head Assy: 03-6533A

Model: SD7H15HD

Mounting Type: Ear 8 Long

OEM Number: LE1150

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Long Key Shaft

Additional Notes: Can Use 8 groove clutch (5068)

Diode Protection: w/diode

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 5745 N83-304333 N83-304595 N83-304953 N83304333 N83304595 N83304953 LE1150 ZGG19297 1401110 2003413-C91 18-03788 F69-6002-243 75R-81452 75R-84572 RD5-11313-0 2003413C91 1803788 F696002243 75R81452 75R84572 RD5113130 4645 4665 85100864 85100887 61104-3423 611043423 82016157 5748 6669 8099 AC501-223A AC501223A 501-223A 501223A AC501-248A AC501248A 501-248A 501248A

Information!

Refrigerating system on the chiller is dirty chips and dust (grease: oil-aluminum) after blurred the previous compressor. Repeatedly rinse the entire refrigeration system, until perfectly clean oil. Then replace the filter drier, and also check the oil separator. Cleaning should be done also on the system defrostu - defrost (if any). After a few days of work once again check the purity of the oil in the compressor. If you do not comply with the recommendations there is a high likelihood of recurrence damage the compressor.

Use the correct oil for the refrigerant.

New compressors are always filled with oil, however, the service technician during installation should check again whether the dosage is appropriate for a particular compressor.
