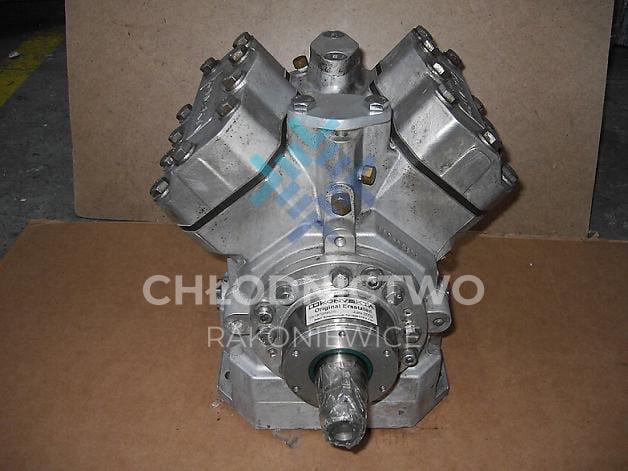

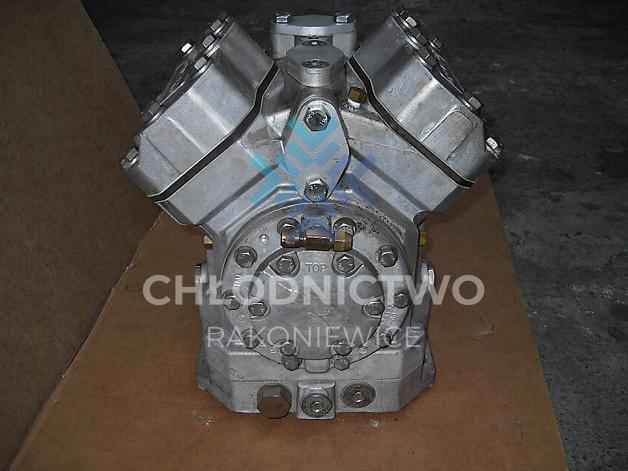

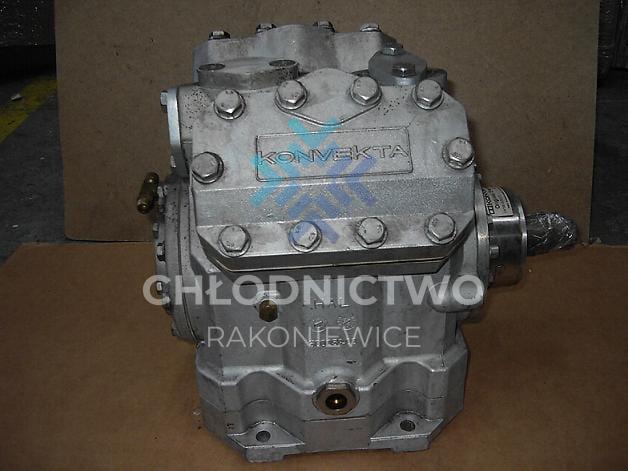

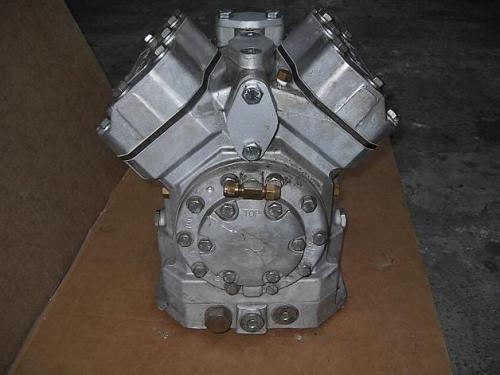

Compressor Konvekta KV6 ; H13-002-903 regenerated
Description
Compressor Konvekta
Model:
KV6 -647 cm, KV-6 /667 cm, KV6 /667 cm
4NFC, 4-NFC, 4 NFC
Cylinder volume - 647 cm³
Displacement (1450rpm) – 56,2 m³/h
Displacement (3000rpm) – 116,4 m³/h
No. of cylinder x bore x stroke4 x 70mm x 42mm
Allowed speed range - 500 .. 3500 1/min
Weight (without clutch) 33,0 kg
Magnetic clutch 12V or 24V DC - LA16 (Option)
Weight magnetic clutch 10 kg
V-belts 2 x SPB
Maximum pressure (LP/HP) - 19 / 28 bar
Connection suction line35 mm - 1 3/8'
Connection discharge line - 35 mm - 1 3/8'
Oil type R134aBSE 55 (Option)
Oil charge - 2,5 dm³
Crankcase heater - 70 W 12or 24V DC (Option)
Pressure relief valve - Standard
Oil drier - Option
Capacity control - 100-50% (Option)
Catalog number:
Konvekta
H13-002-903, H13002903
