Car chiller THERMAL - 2500 without the electric motor

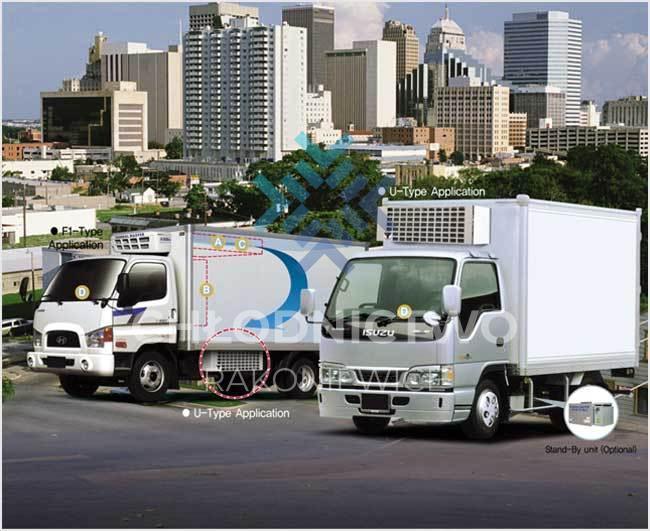

Big capacity temperature control for trucks needing deep-frozen capability.

Compact, powerful units for small & medium trucks.

Car chiller with heating option THERMAL - 2500 .The cooling unit consists of:
-evaporator / evaporator with dimensions of 1240mm x 690mm x 170mm tall with a turbine fan 24VDC with high efficiency with a plastic housing, expansion valve, Cipla exchanger, valve defrostu
-cold-set of Goodyear hose to connect the compressor, evaporator and condenser
-complete wiring harness (about 6 m) for connecting the control, security, battery, evaporator, condenser, compressor and hose to the driver cabin
-cab-driver (the same model in all units Thermal Master) with dimensions of 155mm x 80mm x 45mm height
-compressor / compressor production TAMA-TM-16H9/Zexel Seltec TM16 with electromagnetic clutch two strips of 13mm to 2A, coil powered by 24V DC
-hose water flow (outflow drain) about 4mb
-set screws evaporator, condenser (reinforced handle), silicone seals, tightening straps and hoses
-control panel with relays and fuses box measuring 150mm x 80mm x 50mm height
-cover strip-aluminum to protect electrical cables and coolant hoses (ca.132cm)
-condenser with two axial fans, solenoid valves, three-way valve, filter drier, dryer, pressure tank, pressure switch, plastic housing, dimensions 1010mm x 460mm x 410mm height

To connect and start the generator is still required:
compressor-mounting kit to the vehicle's engine with the belt and the belt tensioner (we have different models on offer)
-refrigerant R-404a
-professional with the experience and the right tools (from his many years of trouble-free operation depends on aggregate)

There is also the option of heating in the winter for a small fee. Very well even at - 20 ° C.

See more: http://thermalmaster.co.kr/sub/pd_truck_2500.htm



●Specifications

● Cooling Capacity

ㆍSystem net cooling capacity under ATP conditions including 30℃(=86F)ambient


※Specifications are subjected to change without notice.
