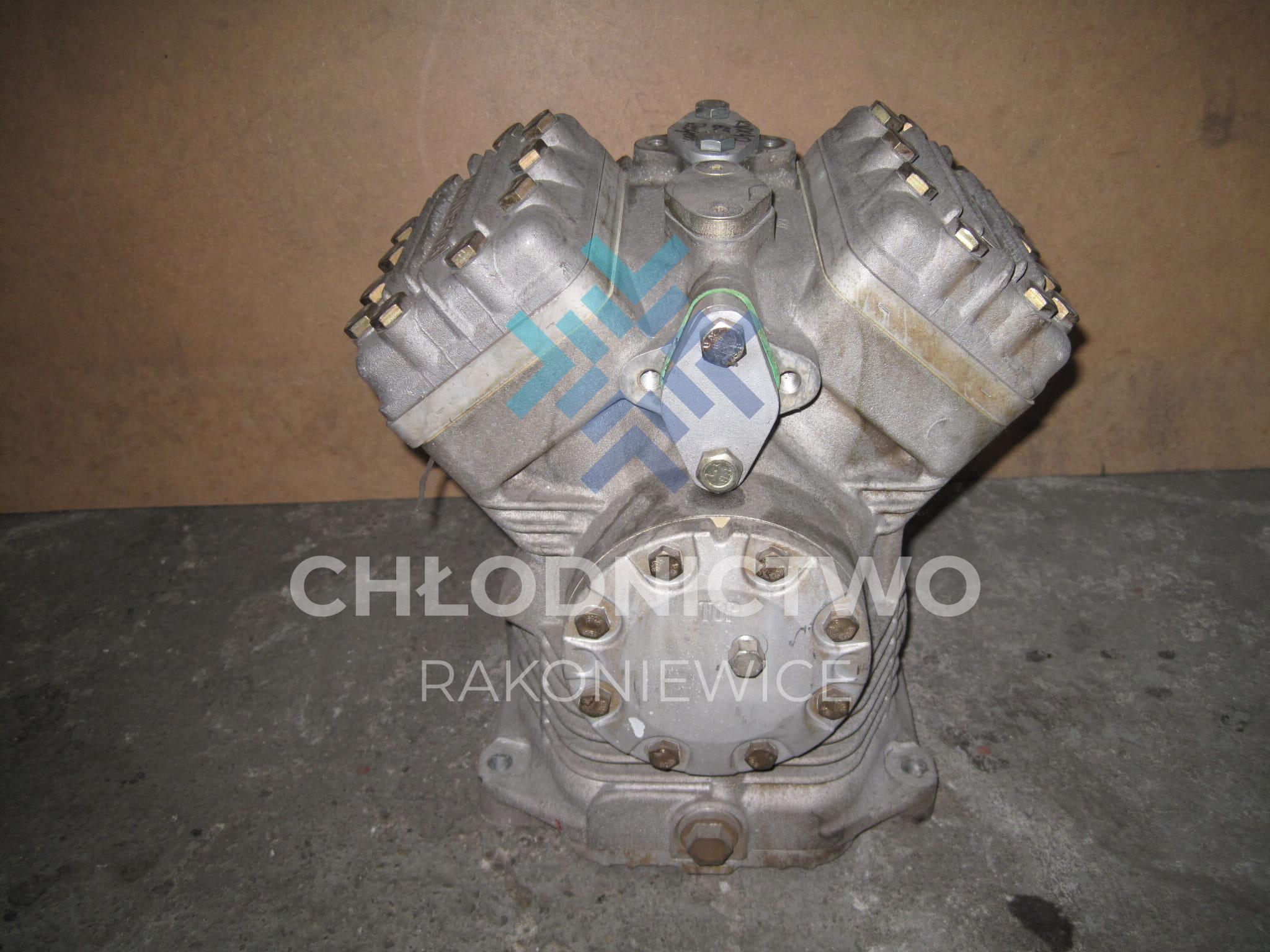

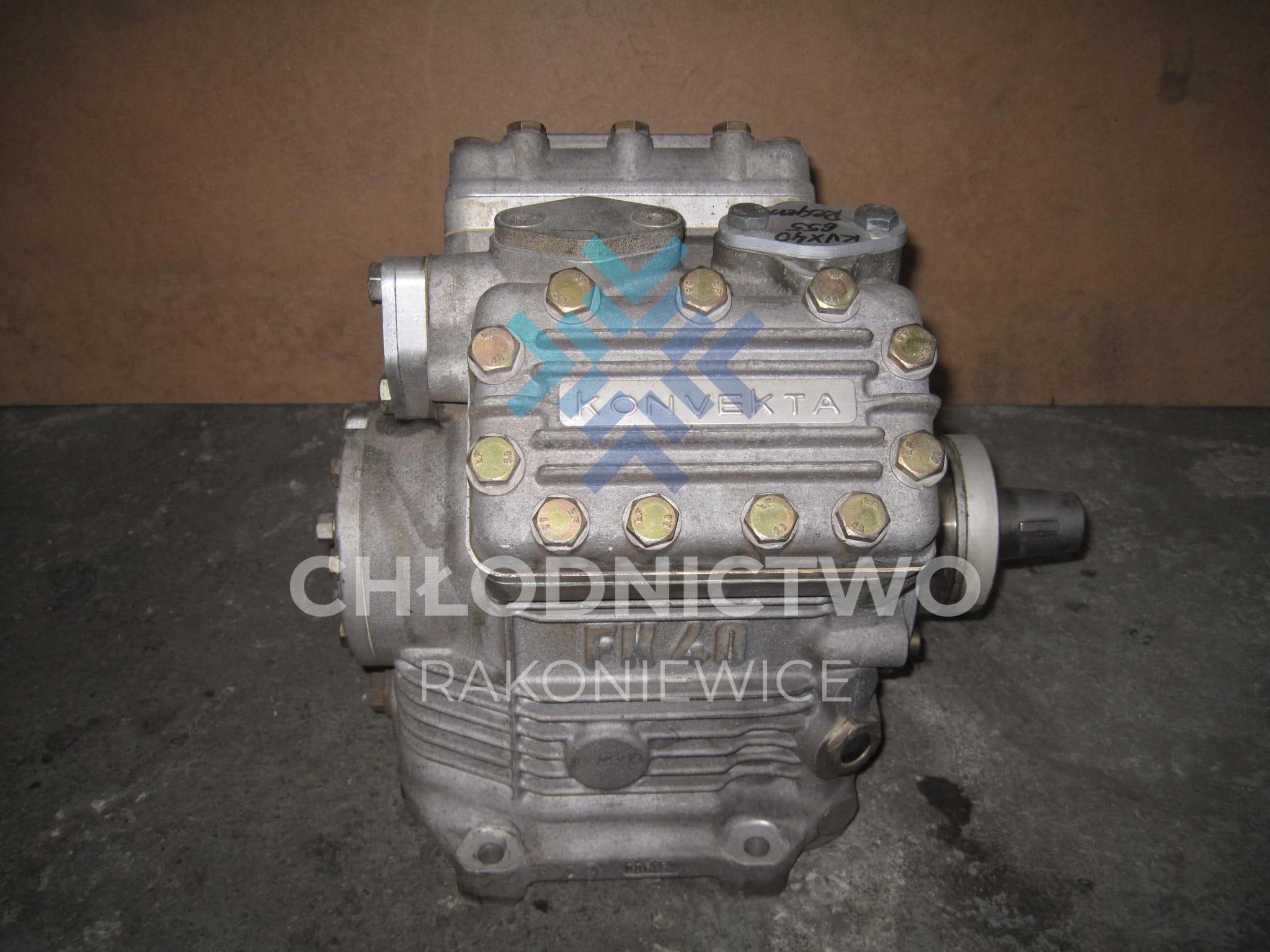

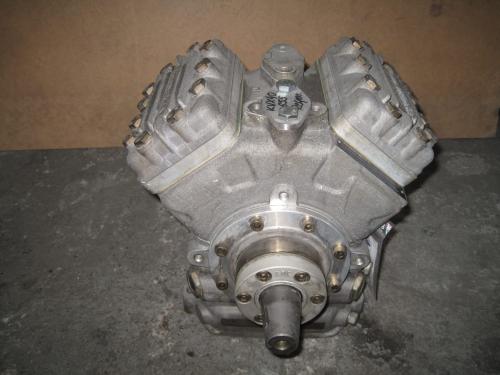

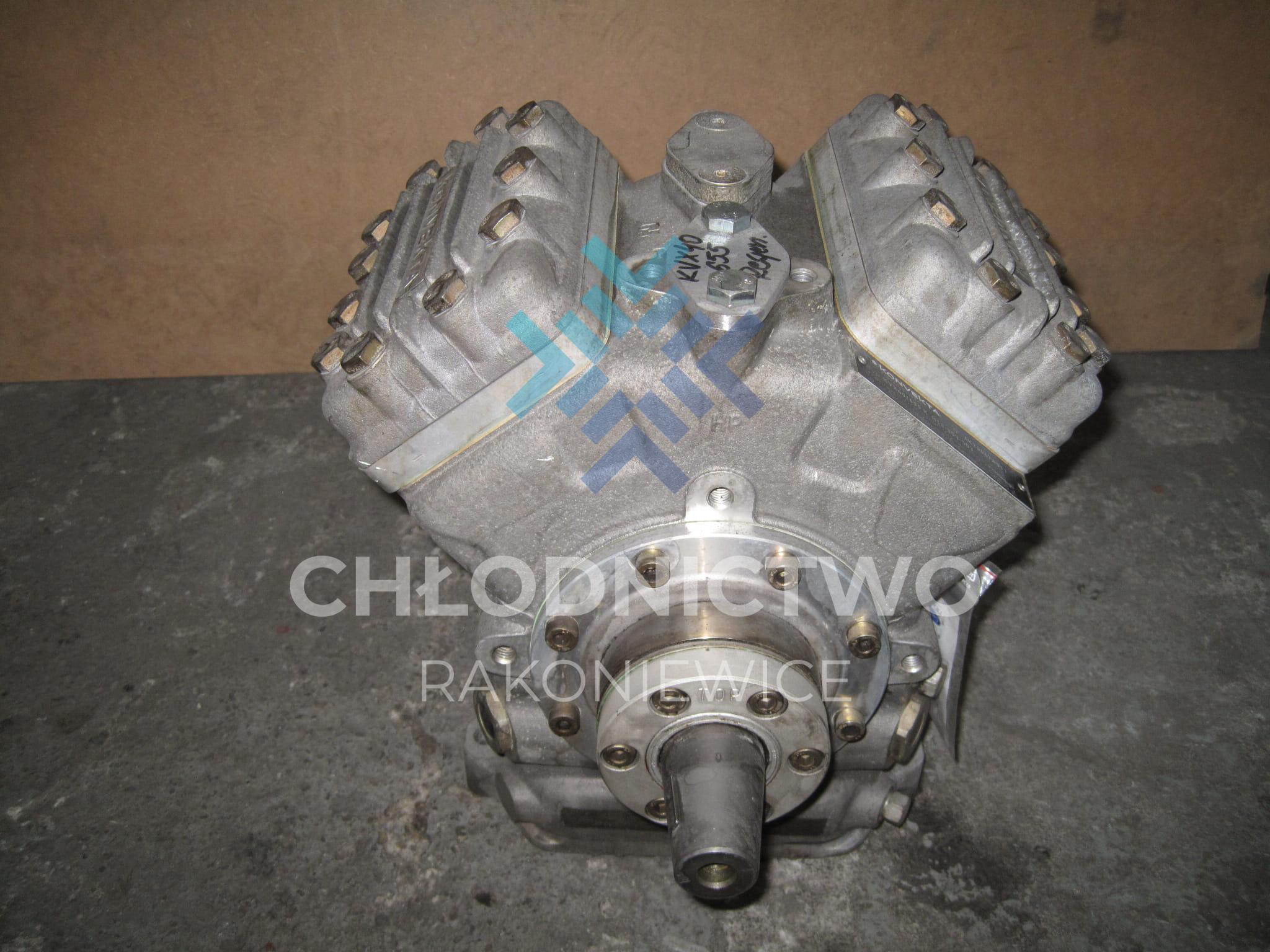

Compressor Konvekta / Bock ; KVX 40/655K regenerated

Availability: On stock

Dispatched within: 24 godziny

Gross price: €1,143.99 1143.99

Net price: €930.07

quantity szt.

product unavailable

Product code: KVX40/655Kr

Compressor Konvekta

- regenerated

Model:

-FK 40/655K, FK-40/655K, FK40/655K

-KV 40/655K,KV-40/655K, KV40/655K

-FKX-40/655K, FKX - 40/655K, FKX40/655K

-KVX-40/655K, KVX - 40/655K, KVX40/655K

Cylinder volume - 647 cm³

Displacement (1450rpm) – 56,2 m³/h

Displacement (3000rpm) – 116,4 m³/h

No. of cylinder x bore x stroke4 x 70mm x 42mm

Allowed speed range - 500 .. 3500 1/min

Weight (without clutch) 33,0 kg

Magnetic clutch 12V or 24V DC - LA16 (Option)

Weight magnetic clutch10 kg

V-belts 2 x SPB

Maximum pressure (LP/HP) - 19 / 28 bar

Connection suction line35 mm - 1 3/8'

Connection discharge line - 35 mm - 1 3/8'

Oil type R134aBSE 55 (Option)

Oil type R22 -B5.2 (Standard)

Oil charge - 2,5 dm³

Crankcase heater - 70 W 12or 24V DC (Option)

Pressure relief valve - Standard

Oil drier - Option

Capacity control - 100-50% (Option)

Air conditioning: HKL/ACX 622

Bus: MAN A72/A78

Catalog number:

Konvekta

H13-004-503, H13004503, H 13004503

H13-003-503, H13003503, H 13003503

H13-003-574, H13003574, H 13003574

PRICE FOR SERVICE AND FOR WHOLESALE!
